medium industrial robots IRB 4600 welding robotic machine with 6 axis
Main Specifications:
Model:IRB 4600
Maximum reach:2050 mm
Maximum payload:45 kg
Pose repeatabilit: ± 0.05 mm
Number of axes :6
Weight:425kg
Protection rating: IP 67 with Foundry Plus 2 option
| Production Name | ABB IRB 4600 |
| Model | IRB 4600-45/2.05 |
| Application | laser cutting robot arm |
| Maximum reach | 2050 mm |
| Maximum payload | 45kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axes | 6 |
| Mounting position | Floor, shelf, inverted or tilted |
| Footprint | 512mm x 676mm |
| Weight | 425 kg |
| Protection rating | IP67 with Foundry Plus 2 option |
| Controller | IRC5 Single cabinet |

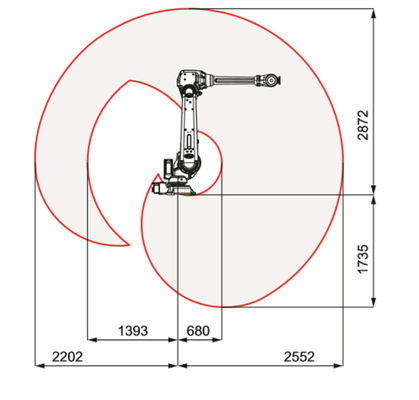

| Motion range | |
| A1 | 180° to -180° |
| A2 | 150° to -90° |
| A3 | 75° to -180° |
| A4 | 400° to -400° |
| A5 | 120° to -125° |
| A6 | 400° to -400° |
