Fisher 3610J and 3620J Positioners and 3622 Electro Pneumatic Converter of fisher valve as valve valve

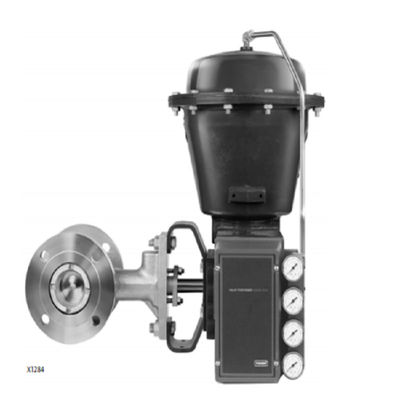

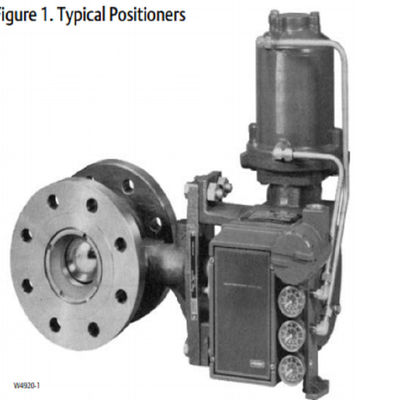

3610J or 3610JP pneumatic positioners and 3620J or 3620JP electropneumatic positioners are used with diaphragm rotary actuators and piston rotary actuators as shown in figure 1. 3611JP and 3621JP positioners are used with Fisher 585, 585R, 585C, or 585CR sliding stem actuators as shown in figure 2. The positioner mounts integrally to the actuator housing and provides a valve ball, disk, or plug position for a specific input signal. The positioner accepts either a pneumatic or milliampere input signal. Refer to the Type Number Description for a detailed explanation of type numbers.
| Area Classification | ATEX Group II Category 2 Gas and Dust |
| Certifications | ATEX, CUTR, PED |
| Communication Protocol | 2.0 bar Pneumatic Signal |
| Diagnostics | No |
| Input Signal | Pneumatic |
| Max Outlet Pressure | 50 psi |
| Mounting Type | Actuator Mounted |
| Operating Temperature | Standard Temperature |
| Position Control | Modulating |
| Supply Media | Air, Natural Gas |
