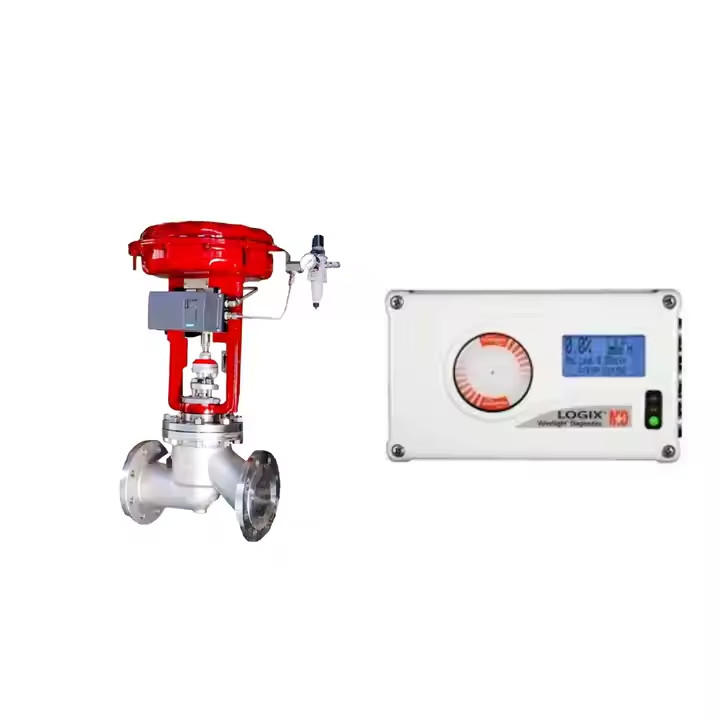

The Logix® 520MD digital positioner is a highly efficient instrument that combines top-notch positioning and tuning functionalities with an easy-to-set-up mechanism and diagnostic tools that are nothing short of powerful. The Logix 520MD positioner implemented an algorithm for multi-variable gain tuning, which enables it to execute large step changes with minimal overshoot while still efficiently resolving to correspond to small step alterations.
The Auto-tune procedure is a feature of the Logix 520MD positioner that automatically cycles the actuator so it can produce a measured response and pick gain values that guarantee adequate actuator performance. The Auto-tune function features a gain modifier selector that can significantly increase or decrease the calculated gain, allowing the positioner to achieve optimal performance.
The Logix 520MD digital positioner is designed to allow for easy DIP switch configuration for tuning mode and other common settings. Although the tuning sets can be tailored with ValveSight™ software or a handheld device, catering to a broad range of actuator sizes and types.
Enhanced commissioning capabilities with easy and efficient configuration make the process more streamlined. Additionally, the apparatus offers self-calibration with auto-tune features that come equipped with adjustable gain selector for precision.
The product follows the industry-standard HART communication norms for seamless communication. It promises reduced air consumption while offering a two-stage control design for faster response times and tighter control.
Furthermore, the equipment offers standard diagnostic functionality through ValveSight™ software, which enables better control mechanisms and efficient troubleshooting.
| Technical Parameter | Value |
|---|---|
| Control Positioner Actuator | Throttling Control, On/Off |
| Intrinsically Safe | Class 1, Zone 0, AEx Ia IIC；Class I Division 1 Groups A,B,C,D |
| Digital Positioner | 4 - 20 MA (HART) |
| Type | Digital Positioner |
| Humidity | 0-100% Non-condensing |
| Max Outlet Pressure | 145 Psig |
| Data Interface | Wired |
| Communication Protocol | HART |
| Valve setpoint | 4-20mA, 450 Ohms Input Resistance |
| Product | Valve Positioner, Pneumatic Valve Positioner |
The power industry encompasses a range of different technologies and methods for generating electricity. Some of the most common types of power generation include conventional steam, combined cycle, concentrated solar power (CSP), biomass and MSW, and geothermal. Each of these methods offers unique benefits and drawbacks, and is suited to different environments and applications.
The chemical industry covers a broad range of products and applications, from basic organic and inorganic chemicals to specialty fine and consumer chemicals. Some of the most notable areas within this industry include biofuels, pharmaceuticals, and petrochemicals. Each of these sub-sectors requires its own specialized equipment and processes to produce high-quality products safely and efficiently.
Water is an essential resource that requires careful management and protection. Some of the key areas of focus within the water industry include water management, wastewater treatment, agriculture and irrigation, and flood control systems. These areas require a combination of advanced technology and management techniques to ensure that water resources are used effectively and sustainably.
The oil and gas industry is a critical part of the global economy, providing the fuel and energy needed to power a wide range of industries and applications. This industry can be divided into three main areas: upstream exploration and production, midstream transportation, and downstream processing. Each of these areas requires specialized knowledge and equipment to ensure that oil and gas can be extracted, transported, and processed safely and efficiently.
The general industries sector encompasses a broad range of different industries, including pulp and paper, steel and primary metals, food and beverage, corn wet milling and ethanol, and many others. Each of these industries has unique requirements when it comes to equipment and processes, and may also be subject to specific regulations and standards.
The mining industry is focused on extracting and processing valuable minerals from the earth. This industry encompasses a broad range of different activities, including exploration and development, mineral processing and refining, and mine reclamation and closure. As with other industries, the mining sector requires specialized knowledge and equipment to ensure that minerals can be extracted safely, efficiently, and sustainably.
The Control Valve Positioner product offers the following technical support and services:
- On-site technical support and troubleshooting
- Remote technical support via phone or email
- Product installation and commissioning services
- Training on product operation and maintenance
- Repair and maintenance services
- Spare parts and replacement services
