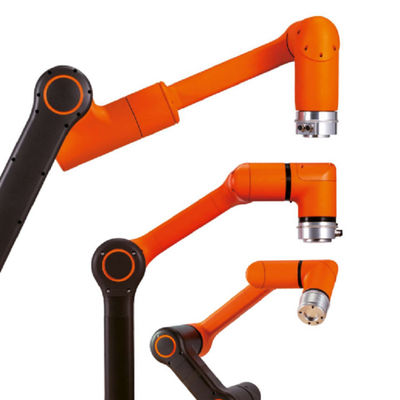

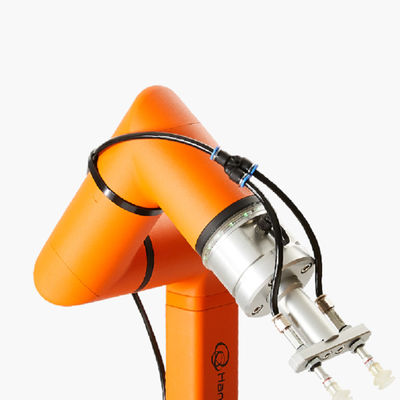

Hanwha HCR-5 cobot robot arm with gripper industrial robotic arm 6 axis with robot arm for cobot welding
nwha Robotics HCR robot software Rodi is easy for anyone to use due to its intuitive UI
- Icon based commands
- Alerts to minimize programming errors
- Video editor-like program structure
- Visualized the tact-time for each task
- Script, tree structure
- Pattern function allows make easier to apply stacking, palletizing or circle move.
| Specifications | |||
| type | HSC-3 | HSC-5 | HSC-12 |
| weight | 13kg | 21KG | 52KG |
| payload | 3kg | 5kg | 12kg |
| Axis | 6 | ||
| reach | 590mm | 800mm | 1300mm |
| power | 100~240VAC,50~60HZ | ||
| joint range | ±360° | ||
| Mounting space | 130mm | 150mm | 220x227mm |
| tool speed | 1m/s | ||
| Mounting type | Floor/wall/Cell | Floor/wall/Cell | Floor/Cell |
| I/O | Digital In4/out4 Analog In 2 DC12/24V 1.6A ETHER CAT | ||
| repeatability | ±0.1mm | ||
