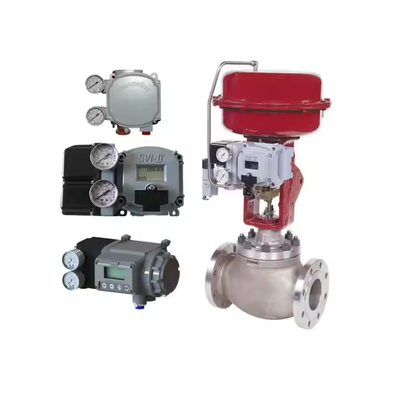

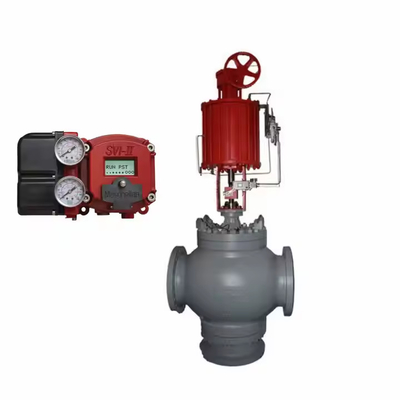

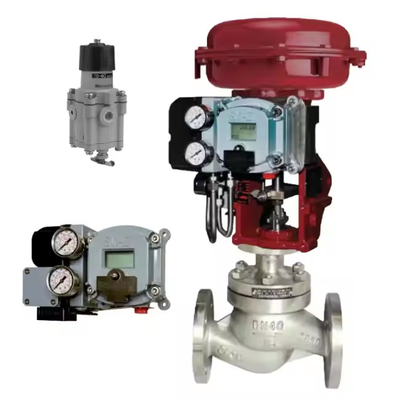

The Masoneilan SVI™ II AP Advanced Performance Digital Valve Positioner (HART) is a reliable and efficient instrument for controlling pneumatic actuators. The instrument features a 32 bit microprocessor and a local interface that allows for easy control of the valve position. The instrument also supports bi-directional communication using the HART protocol, which enables it to communicate with other devices and systems.
The SVI2 AP is a versatile digital valve positioner that offers a range of features and benefits. One of its key features is its 32 bit microprocessor which provides precise control of the valve position. The HART protocol allows bi-directional communication providing valuable asset management data. The instrument is designed to be compatible with Masoneilan or non-Masoneilan pneumatic actuators, making it easy to retrofit in place of existing analog positioners. It can also be used with either single-acting or double-acting actuators.
The SVI2 AP is designed with a universal mounting kit that allows for easy retrofitting. This means that it is suitable for use with a range of different actuators, making it a versatile solution that can be used in a variety of applications. The instrument is also user-friendly, with a local interface that makes it easy to control and adjust valve position.
Safety is a top priority when it comes to digital valve positioners. The SVI2 AP has various safety features in place to ensure that the valve is operated within safe limits. These include safety interlocks that prevent unsafe operation of the valve, as well as a robust design that ensures reliable performance in the most demanding conditions.
Non-Contact Position Sensing Technology :
The sensing technology uses non-contact methods that involve sensing through the housing without any mechanical moving parts entering the main housing cavity. This technique prolongs the overall life of the system while offering reliable performance.
The mounting procedure is simple and can be executed effortlessly without complications.
Easy, Simple, Accurate :
The LCD and pushbuttons are operable in all certified hazardous environments, providing ease of use.
Quick and accurate commissioning is achievable, thanks to the system's auto stops and auto tune methods. Additionally, one design fits many applications, making it an efficient choice.
The sensing technology can function in rotary or linear motion systems, and it is equipped with both remote and local options to address different sensing requirements.
| Materials | Copper-free Aluminum Housing |
| Hysteresis + DeadBand | +/- 0.3 Percent Full Span |
| Features | Easy, Simple, Accurate |
| Linearity | +/- 1 Percent Full Scale |
| Type | Digital Valve Positioner |
| Signal Communication | HART 5 Or 7 Over 4-20mA |
| Repeatability | +/- 0.3 Percent Full Span |
| Pneumatics | Air Or Sweet Natural Gas – Regulated And Filtered |
| Minimum Current Signal | 3.2 MA |
| Brand Name | Masoneilan |
The industries that can benefit from our products and services include:
Our products and services are designed to cater to various applications in the above-mentioned industries. Some of the key applications include:
The Control Valve Positioner product offers the following technical support and services:
- Installation support
- Product training and education
- Troubleshooting assistance
- Repair and maintenance services
- Calibration and testing services
- Spare parts and replacement services
- Warranty support
