Temperature (in Accordance With DIN EN):-45 To 150 °C | -49 To 302 °F
Temperatur (nach ASME):-45 To 150 °C | -49 To 302 °F
Material Outlet Body:1.0619, 1.4408, 0.7043 | SA 216 WCB, SA 351 CF8M, Duktil Gr. 60-40-18
Material Inlet Body:1.4104, 1.4404 | SA 479 430, SA 479 316L
Valve Connection:Thread Acc. To DIN ISO 228-1, ISO 7-1 / BS 21 Or ASME B1.20.1, Flange Acc. To DIN ISO 1092-1 Or ASME B16.5
Bellows Material (optional):Stainless Steel And Elastomer
Load Type:Spring Loaded
Highlight:
Type 462 Pressure Reducing Valve
,
250bar Pressure Reducing Valve
,
1.4404 Pressure Reducing Valve
Basic Infomation
Place of Origin:Germany
Brand Name:LESER
Model Number:Type 462
Payment & Shipping Terms
Packaging Details:Carton
Delivery Time:4~6 WEEKS
Payment Terms:T/T, D/A, L/C, D/P, Western Union
Supply Ability:50 SETS/MONTH
Gallery

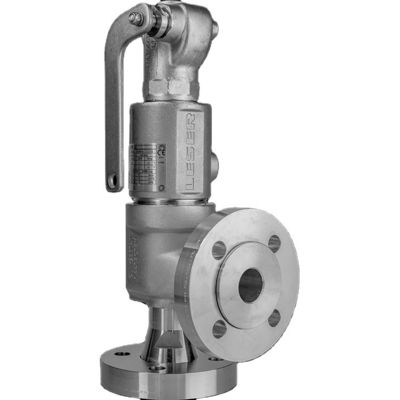

Compact Performance Type 462 Spring Loaded Pressure Safety Valve
Product Description
Compact Performance Type 462 Spring Loaded Pressure Safety Valve
Product Description
Specification
item
value
Warranty
1 Year
Type
Safety Relief Valves
Place of Origin
Germany
Brand Name
LESER
Model Number
Type 462 Compact Performance
Application
Industries
Media
Gas/Oil
Structure
Safety
Nominal Diameter Inlet - Thread
1/2" - 1 1/2" | 1/2" - 1 1/2"
Nominal Diameter Inlet - Flange
DN 15 - DN 25 | 1/2" - 1"
Actual Orifice Diameter d
9 - 17.5 mm | 0.354 - 0.689 in
Actual Orifice Area A
63.6 - 241 mm² | 0.099 - 0.374 in²
Pressure
0.5 - 250 bar | 7.3 - 3626 psig
Flange Rating Inlet
PN 40 - PN 400 | CL150 - CL2500
Temperature (in accordance with DIN EN)
-45 to 150 °C | -49 to 302 °F
Temperatur (nach ASME)
-45 to 150 °C | -49 to 302 °F
Material Outlet Body
1.0619, 1.4408, 0.7043 | SA 216 WCB, SA 351 CF8M, Duktil Gr. 60-40-18
Load Type
Spring loaded
Packing & Delivery
Safety Valve With O-ring Disc Compact Performance Type 462 Spring Loaded Pressure Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
Company Profile
Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises. With our dedicated service, our customers' work is made easy and efficient. As a comprehensive supplier of electromechanical products, Xiangjing (Shanghai) Technology Co., Ltd. adheres to the modern market concept of customer-centered, relying on the rich product resources of the Doctoral Group and the industry e-commerce platform and the centralized professional service team to pass professional orders. Procurement, specialized inventory and distribution management and specialized technical support to achieve accurate and timely delivery services, localized services and quick and timely response, maximizing customer value, effectively shortening your spare parts supply cycle and effectively reducing inventory Effectively improve the efficiency of your work, thus effectively improving the overall competitiveness of the company.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Valve,Valve Accessories
4. why should you buy from us not from other suppliers?
Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conserva
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
