Actual Orifice Diameter D:23 - 92 Mm | 0.91 - 3.62 In
Actual Orifice Area A:416 - 6648 Mm² | 0.644 - 10.304 In²
Pressure:0.1 - 51 Bar | 1.5 - 740 Psig
Flange Rating Inlet:CL150 - CL300 | CL150 - CL300
Temperature (in Accordance With DIN EN):-270 To 450 °C | -454 To 842 °F
Temperatur (nach ASME):-268 To 538 °C | -450 To 1000 °F
Body Material:1.0619, 1.4408 | SA 216 WCB, SA 351 CF8M
Valve Connection:Flange Acc. To ASME B 16.5 Or Acc. To JIS 2220
Load Type:Spring Loaded
Highlight:
Type 442 Pressure Reducing Valve
,
ANSI Spring Loaded Safety Valve
,
DN25 Pressure Reducing Valve
Basic Infomation
Place of Origin:Germany
Brand Name:LESER
Model Number:Type 442 ANSI
Payment & Shipping Terms
Packaging Details:Carton
Delivery Time:6~8 WEEKS
Payment Terms:T/T, D/A, L/C, D/P, Western Union
Supply Ability:50 SETS/MONTH
Gallery

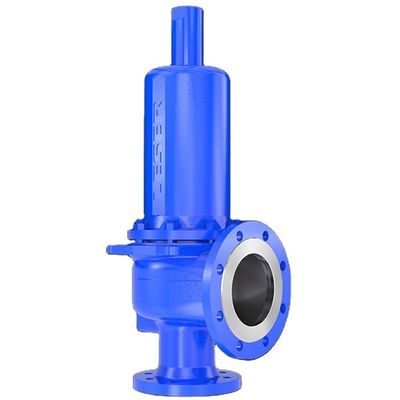

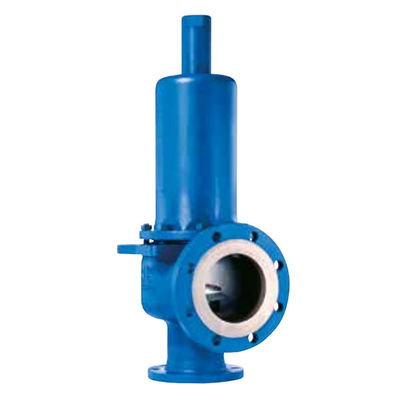

Type 442 ANSI High Performance With ANSI Flange Spring Loaded Safety Valve
Product Description
Type 442 ANSI High Performance With ANSI Flange Spring Loaded Safety Valve
Product Description
Specification
item
value
Warranty
1 Year
Type
Safety Relief Valves
Place of Origin
Germany
Brand Name
LESER
Model Number
Type 442 ANSI
Application
Industries
Media
Gas/Oil
Structure
Safety
Nominal Diameter Inlet
DN 25 - DN 100 | 1" - 4"
Actual Orifice Diameter d
23 - 92 mm | 0.91 - 3.62 in
Actual Orifice Area A
416 - 6648 mm² | 0.644 - 10.304 in²
Pressure
0.1 - 51 bar | 1.5 - 740 psig
Flange Rating Inlet
CL150 - CL300 | CL150 - CL300
Temperature (in accordance with DIN EN)
-270 to 450 °C | -454 to 842 °F
Temperatur (nach ASME)
-268 to 538 °C | -450 to 1000 °F
Body Material
1.0619, 1.4408 | SA 216 WCB, SA 351 CF8M
Valve Connection
Flange acc. to ASME B 16.5 or acc. to JIS 2220
Load Type
Spring loaded
Packing & Delivery
Pressure Safety Valves Type 442 ANSI High Performance With ANSI Flange Spring Loaded Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
