Name: Pop Action Type 811 High Efficiency Pilot Operated Safety Valve
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: Type 811
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Nominal Diameter At Inlet: DN 25 - DN 200 | 1" - 8"

Orifice: API Standard As Well As Extra Orifice: 1 D 2 - 8 T 10 / 1 G 2 - 8 T+ 10

Actual Orifice Diameter D₀: 11 - 190 Mm | 0.433 - 7.087 In

Actual Orifice Area A₀: 95 - 25446.9 Mm² | 0.147 - 39.443 In²

Pressure: 2.5 - 256 Bar | 36 - 3705 Psig

Flange Rating Inlet: PN 10 - PN 250 | CL150 - CL1500

Temperature (in Accordance With DIN EN): -45 To 200 °C (Special: -162 To 300 °C) | -49 To 392 °F (Special: -259.6 To 572 °F)

Temperatur (nach ASME): -45 To 200 °C (Special: -162 To 300 °C) | -49 To 392 °F (Special: -259.6 To 572 °F)

Body Material: 1.0619, 1.4408 (Special: Hi Alloy) | SA 216 WCB, SA 351 CF8M, SA 352 LCB (Special: Hi Alloy)

Valve Connection: Flange Acc. To DIN EN 1092 Or Acc. To ASME B 16.5 Or Acc. To JIS 2220

Load Type: Controlled By Process Medium

Specials: Pilot Action Type: Pop Action | Open: 1% Opening Pressure Tolerance | Closed: 3 - 7% (adjustable Also Beyond API Standard From 3 Up To 15%) Closing Pressure Tolerance | Application: Gas

Approvals: ASME Sec. VIII Div. 1, PED/ DIN EN ISO 4126-4, PED/ AD 2000-Merkblatt A2, AQSIQ, EAC, TSSA

Classification Societies: LR, RINA, DNV GL, BV

Highlight:

Type 811 Pilot Operated Safety Valve

Pop Action Pilot Operated Safety Valve

DN25 Pilot Operated Safety Valve

Basic Infomation

Place of Origin: Germany

Brand Name: LESER

Model Number: Type 811

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 6~8 WEEKS

Payment Terms: T/T, D/A, L/C, D/P, Western Union

Supply Ability: 50 SETS/MONTH

Gallery

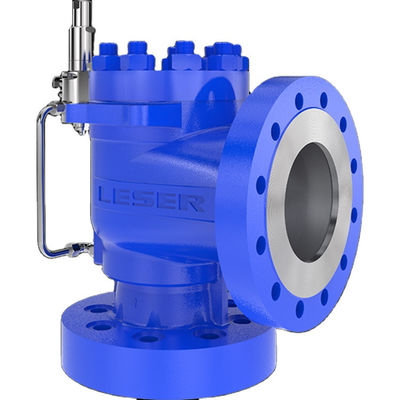

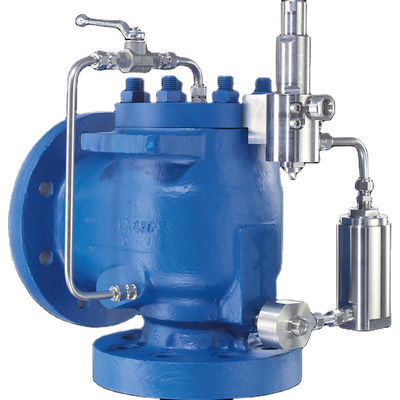

Pop Action Type 811 High Efficiency Pilot Operated Safety Valve

Product Description

Pop Action Type 811 High Efficiency Pilot operated Safety Valve

Solutions for high plant efficiency
Pilot operated safety valves
Highest blow-off capacity of all series
Tightness right up to set pressure
Operating pressures up to 96% of the set pressure
Back pressures up to 70% of the set pressure
Backflow preventer integrated as a standard component

Integrated Piping prevents damage and freezing
Supplementary Loading System

Equipment that enables the following safety valve characteristics:
Tightness right up to set pressure
Operating pressures up to 97% of the set pressure
Low loss of medium due to short opening times
Function test and valve adjustment possible during operation
Suitable for all media temperatures

Product Description

Specification

item	value
Warranty	1 Year
Type	Safety Relief Valves
Place of Origin	Germany
Brand Name	LESER
Model Number	Type 811
Application	Industries
Structure	Safety
Nominal Diameter at Inlet	DN 25 - DN 200 \| 1" - 8"
Orifice	API Standard as well as Extra Orifice: 1 D 2 - 8 T 10
Actual Orifice Diameter d	11 - 190 mm \| 0.433 - 7.087 in
Actual Orifice Area A	95 - 25446.9 mm² \| 0.147 - 39.443 in²
Pressure	2.5 - 256 bar \| 36 - 3705 psig
Temperature (in accordance with DIN EN)	-45 to 200 °C (Special: -162 to 300 °C) \| -49 to 392 °F
Body Material	1.0619, 1.4408 (Special: Hi Alloy) \| SA 216 WCB, SA 351 CF8M
Load Type	Controlled by process medium
Valve Connection	Thread
Bellows Material (optional)	EPDM

Packing & Delivery

Safety plastic Valve For All Media Temperatures Pop Action Type 811 High Efficiency Pilot operated Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
