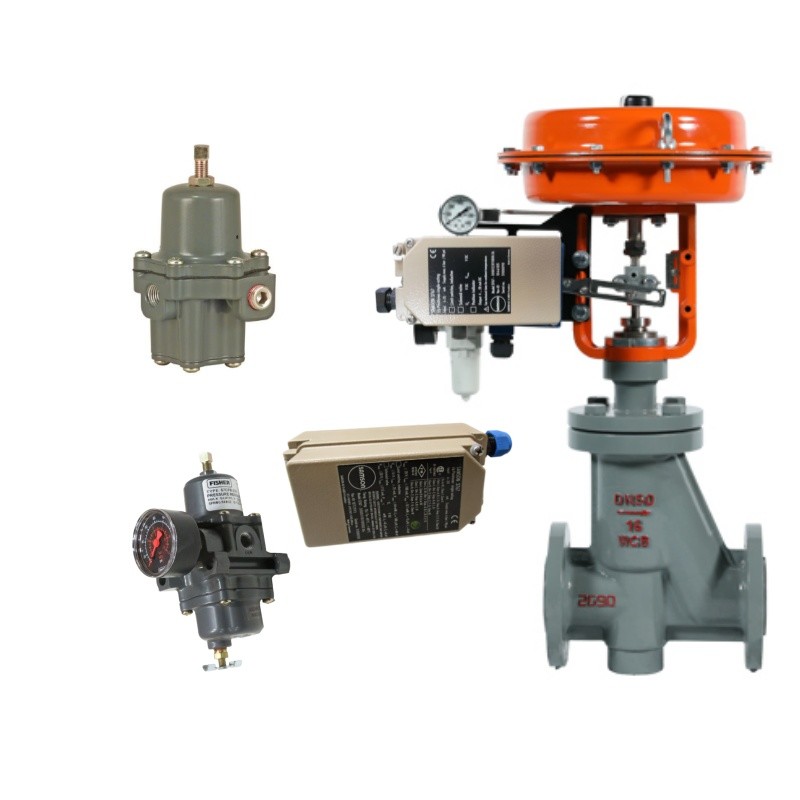

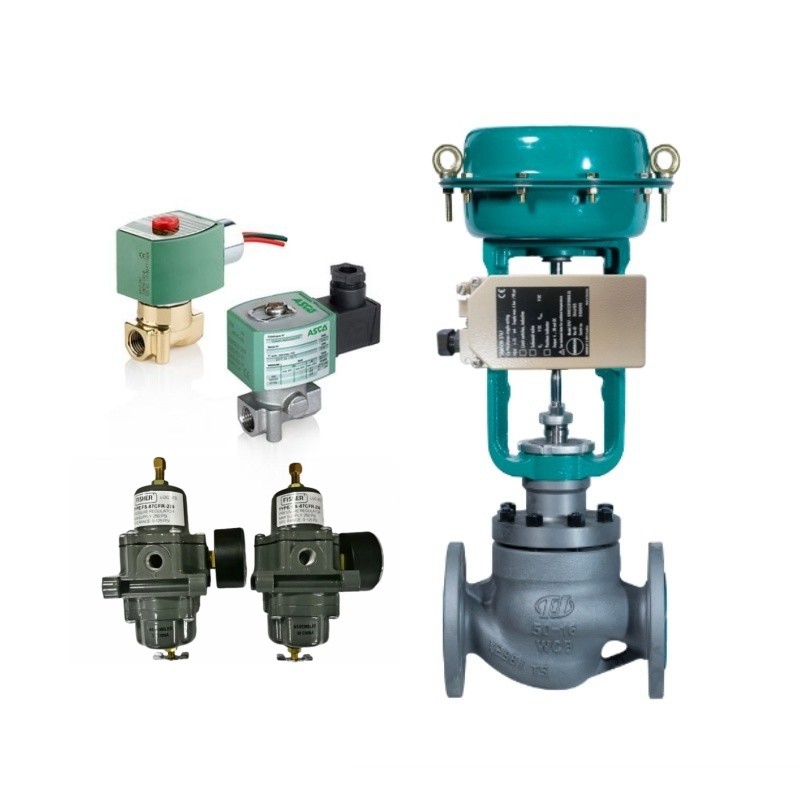

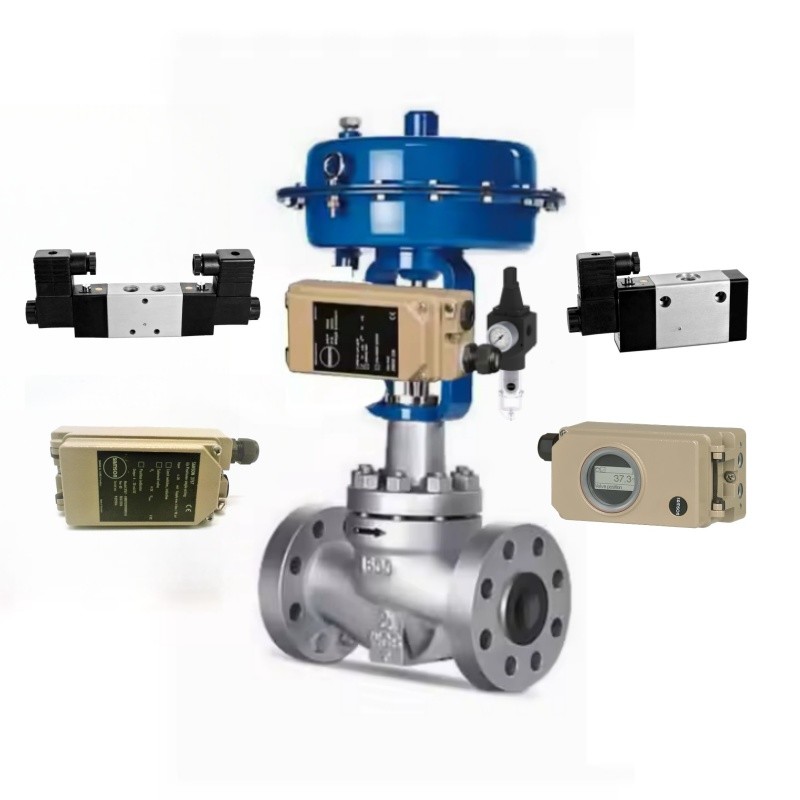

Attachment To Linear/Rotary Actuator Samson 3767 Electropneumatic Positioner

Product Description:

The function of the positioners is to make sure that the valve position, which is known as the "controlled variable x," is properly assigned to the input signal, or the "reference variable w." In order to achieve this, the positioners compare the input signal that is received from a control system to the travel of the control valve. This process results in an output signal pressure pst, or the "output variable y," which corresponds to the input signal received.

If the actuator is double-acting, the positioners utilize a reversing amplifier to produce two opposing signal pressures. This ensures that the actuator can effectively move in both directions, which is necessary in many industrial applications.

Overall, the positioners are a critical component in ensuring that valves are operating as intended and responding to input signals accurately. This technology helps to maintain precise control over industrial processes and maintain efficiency in manufacturing and production settings.

Features:

The following features can be found in our product:

• Mounting in any position
• Suitable for normal or split-range operation
• Excellent dynamic response
• Negligibly small influence of supply air
• Adjustable proportional band (P band)
• Adjustable air output capacity
• Low air supply consumption
• Insensitive to mechanical vibrations, requiring low maintenance
• Compact design

Our product is also available in several versions:

• For use in hazardous areas with intrinsic safety II 2G Ex ia IIC T6 or II 3G Ex nA II T6 for Zone 2
• With type of protection "Flameproof enclosure" Ex d, featuring Type 3766 Positioner and Type 6116 i/p Converter (Fig. 2)
• Direct attachment to Type 3277 Actuator (Fig. 3)
• Attachment to actuators according to IEC 60534-6
• Attachment to rotary actuators according to VDI/VDE 3845

Technical Parameters:

Applications:

There are two different types of positioners available for pneumatic control valves: single-acting and double-acting. These positioners are designed to be attached to the valves to help with their operation.

A single-acting positioner works by using air pressure to move the valve in one direction, typically to the open position. When the air pressure is released, the valve will move back to its original position. On the other hand, a double-acting positioner uses air pressure to move the valve both ways, meaning it can be adjusted to either the open or closed position.

Positioners are useful for helping with the accuracy and precision of pneumatic control valves. They can help to ensure that the valves are opening and closing at the correct times and to the correct degree, which is important for maintaining proper control over various processes.

Overall, the use of positioners can provide a number of benefits for those using pneumatic control valves. Whether choosing a single-acting or double-acting option, these devices can improve the efficiency and accuracy of valve operation in a variety of applications.

Support and Services:

Our Control Valve Positioner product comes with comprehensive technical support and services that include:

• Installation and start-up support
• Product training and education
• Regular maintenance and repair services
• Remote technical assistance and troubleshooting
• Parts and replacement equipment
• Upgrades and retrofits
• On-site field services

Our team of highly skilled technicians and engineers are dedicated to providing prompt and effective support to ensure the optimal performance of our Control Valve Positioner product.

Packing and Shipping:

Product Packaging:

• The control valve positioner will be carefully packaged in a sturdy cardboard box.
• The box will be labeled with the product name, model number, and a picture of the product.
• The product will be securely wrapped in bubble wrap to prevent any damage during shipping.
• There will also be a user manual included in the package.
• The package will be sealed with strong packing tape.

Shipping:

• The control valve positioner will be shipped via a trusted courier service.
• The shipping cost will be calculated based on the destination and weight of the package.
• The package will be shipped within 2 business days of receiving the order.
• The estimated delivery time will be provided to the customer.
• Tracking information will be provided to the customer once the package has been shipped.
