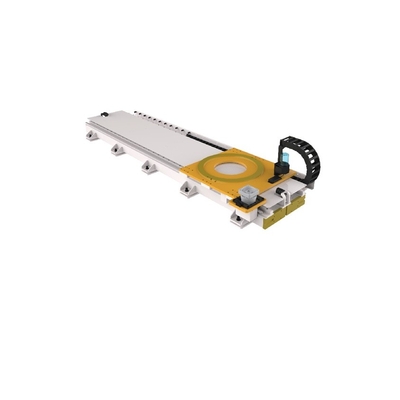

GBS Robot rail for ABB KUKA FANUC Yaskawa KAWASAKI NACHI Robot Arm
Performance best in class
Simple, robust and compact design
- Many common modules for complete range
- Easy to adjust at start up
- The same mechanical footprint of the track for all supported robot models
- Standard, Mirrored and Double carriages
Outstanding speed and accuracy
As first on the market, ABB’s track motions and its respective
robot is a seven-axis dynamic model. ABB’s unique QuickMove and TrueMove can be fully exploited, which means optimal movement for the robot and the track with actual load.
Furthermore, path accuracy and speed are optimized.
The speed position-to-position, which is the real benchmark
of the capability of the track, has improved by more than 40%
compared to earlier models.
Benefits
− Path accuracy best in class
− Simple, robust and compact design
− Less parts, many common modules for complete range
− Easy to adjust at installation and start up
− The same mechanical footprint of the track for
all robot models
− Improved performance
− Shorter cycle time
− Improved path accuracy
− Robot position chosen at installation
− Wide range of options for different applications
Options
− Mirrored version
− Double carriages

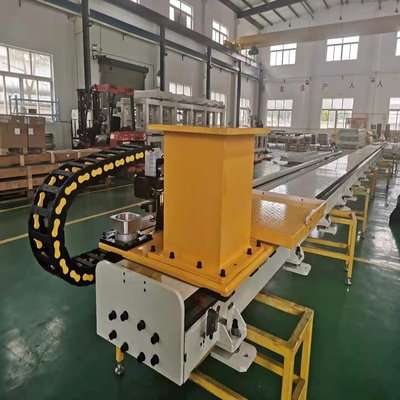

− Pedestals
− Customer Signal and power cable (spot welding, material
handling, etc)
− Lubrication (standard = manual lubrication)
− Prepared for local adaptation (no pump included)
− Central lubrication system incl pump
− Foundry
− Travel length from 1.9 to max 7.9
− From 1.7 to max 7.7
− Cable arrangement
Specification
| payload | 5000kg |
| accelerated speed | 1.2m/s2 |
| Speed | 1m/s |
| reduction ratio | 1:10 |
| Repeatablity | ±0.1 |
| Mounting | Floor |
