Home /Products/Other/low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA

low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA

$42,000.00/Sets >=1 Sets
Price
low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Construction Works , Advertising Company
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition: New
Weight: 2850 Kg, Approx. 2,850 Kg
Power: 380V
Warranty: 1 Year
Weight (KG): 2850 Kg
Product Name: Low Cost Robot Arm Robot Palletizer And Robot Arm 4 Axis For KUKA
Model: KR 700 PA
Pose Repeatability: ± 0.08 Mm
Number Of Axes: 4
Mounting Position: Floor
Footprint: 1,338 Mm X 1,338 Mm
Protection Rating: IP65
Controller: KR C4 Compact
Application: Palletizer
Port: Shanghai
Basic Infomation
Place of Origin: China
Brand Name: KUKA
Payment & Shipping Terms
Supply Ability: 50 Set/Sets per Month
Product Description

low cost robot arm KR 700 PA robot palletizer  and robot arm 6 axis for KUKA

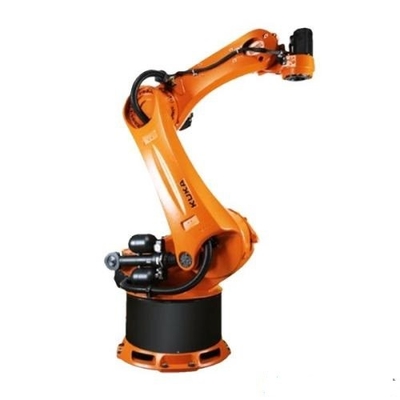

Product image

low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA 0low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA 1low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA 2

Product Description



Specification
Product name  low cost robot arm KR 700 PA robot palletizer  and robot arm 6 axis for KUKA
Model KR 700 PA
Maximum reach 3320mm
Maximum payload 472 kg
Pose repeatability (ISO 9283) ± 0.08 mm
Number of axes 6
Mounting position Floor
Footprint 1050 mm x 1050 mm
Weight approx. 2385 kg
Protection rating IP65
Controller  KR C4 compact
Teach pendant  KUKA smartPAD

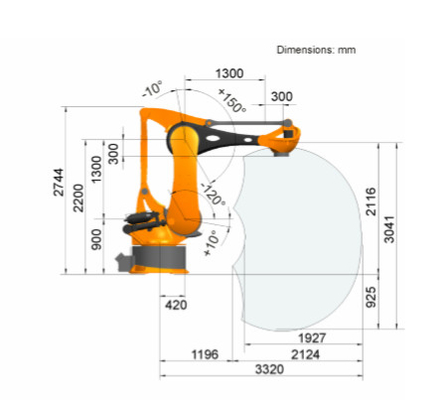

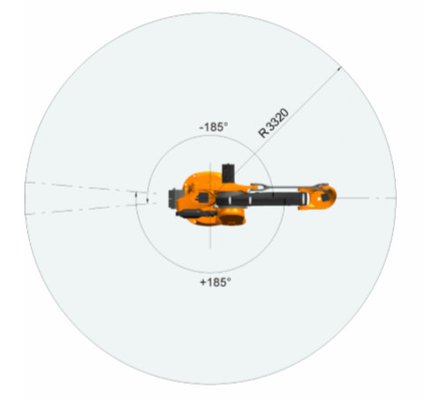

Motion range
A1 ±185°
A2 (-130° / 20°)
A3 (100°- 144°)
A4 ±350°
A5 ±125°
A6 ±350°




Company Information

 low cost robot arm KR 700 PA robot palletizer and robot arm 6 axis for KUKA 3
