Remaining Parts:300 Series Stainless Steel, Nitronic 60
Operating Temperature:See Part Number Selector
Port Size & Type:SAE, NPTF 1/2, 3/4
Hysteresis:±0.5% F.S
Sensitivity:±0.2% F.S
Reapeatability:±0.3% F.S
Highlight:
Burkert Pneumatic Actuator
,
type 3004 Pneumatic Actuator
,
100Nm pneumatic rotary actuator
Basic Infomation
Brand Name:burket
Model Number:3003 ,3004
Payment & Shipping Terms
Packaging Details:Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time:4-10 weeks
Payment Terms:L/C, T/T, Western Union
Supply Ability:50
Gallery
Burkert Pneumatic Actuator Type 3004 20 To 100Nm Electric Rotary
Product Description
Products Description

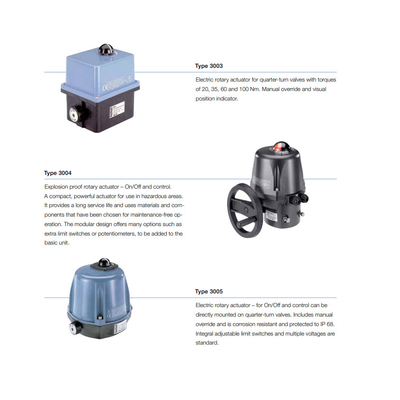

Burkrtt electric rotary actuator from 20 to 100 Nm type 3003 type3004 and type 3005 with lot of stock
Bürkert’s electrical actuators provide torques to suit many applications from 20 to 100 Nm. The actuators offer fast rotation times with all standard AC and DC voltages and using rugged electrical connections. Connection to many types of quarter turn valves is made through the ISO flange fixation from F03 to F07 with a female star drive adaptor. The actuators deliver both On/Off and analogue control through signal inputs and outputs of 0/4 - 20 mA and 0 -10 VDC.
The innovative electromotive linear actuator with fully integrated automation offers a good alternative to traditional
pneumatically actuated solutions for applications where highest precision, smart diagnostics and travel programmability,
simplicity of design and efficient operation without compressed air counts. The electromotive linear actuator consists of a
brushless direct current motor, gears and a threaded spindle, all put together to form a single unit for fast and easy
installation. The valve spindle, which is connected to the threaded spindle, transfers the force to the control cone. Valve
housing and actuator adaption are identical to our approved pneumatic seat valve program. As a result, the actuator can be combined with different process valve bodies (DN 15…50) to form a fully automated electromotive process valve making it even easier for our customer to select a right valve for their application.
Details Images
Product Paramenters
Name
Burkrtt electric rotary actuator from 20 to 100 Nm type 3003 type3004 and type 3005 with lot of stock
Brand
burkertt
Model
3000
Application
Gas& Oil industry
Connection
SOLENOID
size
1/4 NPT

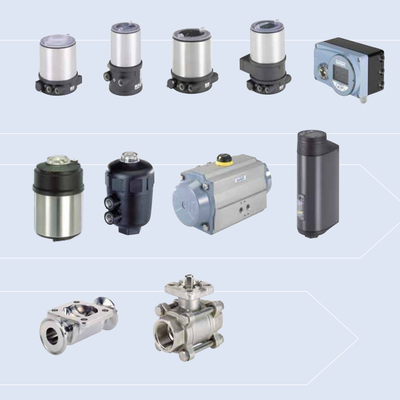

Recommend Products
