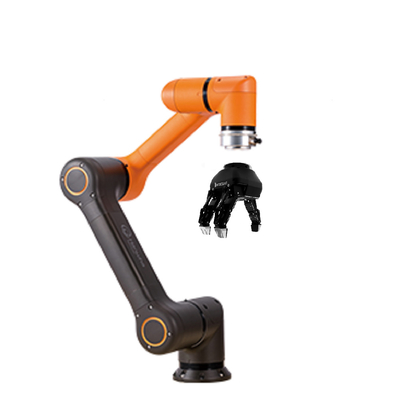

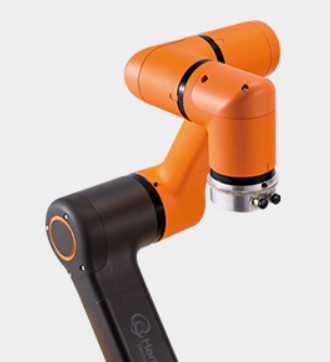

HCR-5A Screw Driving Collaborative Robot Arm Hanwha 6 Axis Cobot Palletizer With Robot Gripper

Specification

item	value
Place of Origin	Korea
Brand Name	Hanwha
Application	Pick&place, palletizing, handling
Features	Collaborative ,light weight, save space
Condition	New
Production Capacity	200set/month
Warranty	12month
Dimension(L*W*H)	450*560*223mm
Power	180w
Voltage	100V~240v
Applicable Industries	Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Construction works
Showroom Location	Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Russia, Japan, Australia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox
Degrees of freedom	6 rotating joints
Weight(excl.cable)	21kg(46.3lb)
Payload	5kg(11lb)
Reach	915mm(36in)
Linear Speed (Typical)	1m/s(39.4 in/s)
TooI/O DC	12V or 24V, 1.6A (continuous)
Mounting Position	Floor,Wall,Ceiling
Material	Aluminum(Link,Cover) Plastic(Seal,LED)
Footprint	128mm
TooI/O Analog In	2

Packing & Delivery

Company Profile

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
