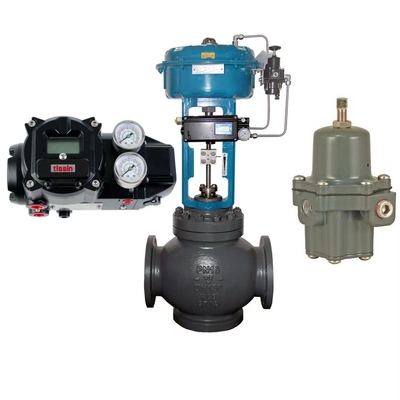

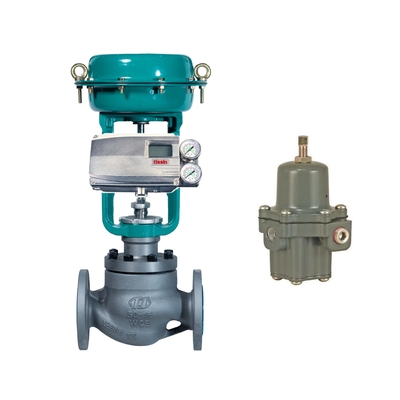

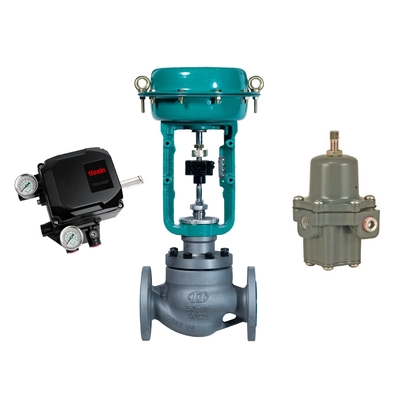

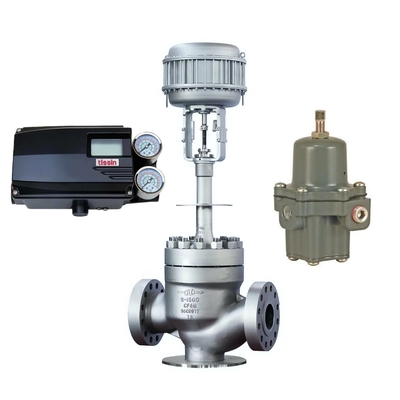

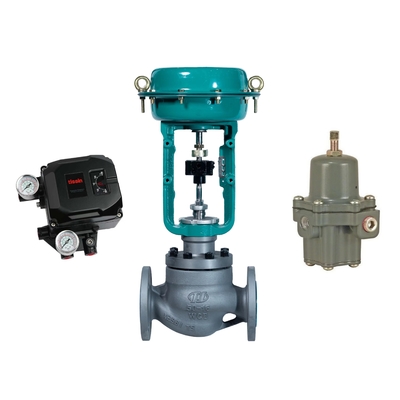

Chuanyi Control Valve Is Equipped With Tissints805 Smart Valve Positioner And Fisher67CFR Pressure Reducing Valve

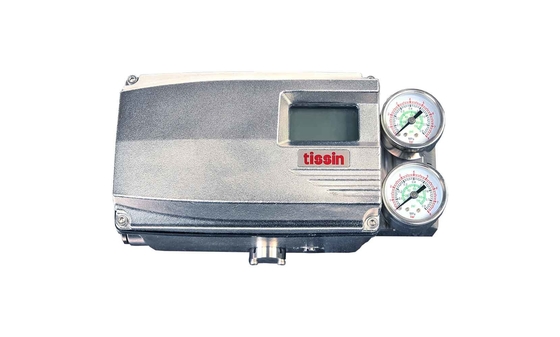

Tissin valve positioners offer numerous benefits for industrial applications. Firstly, their advanced digital control technology provides accurate and reliable valve positioning, resulting in optimal performance and maximum efficiency. Secondly, their user-friendly interface and advanced diagnostic capabilities make them easy to configure and maintain, while their compatibility with a wide range of valves and actuators makes them versatile and adaptable. Furthermore, their robust construction ensures reliable operation even in harsh industrial environments, and their energy-efficient operation helps to reduce energy consumption and operating costs. Overall, Tissin valve positioners are a top-of-the-line solution for industrial valve positioning, offering advanced technology, user-friendly operation, and reliable performance.
| MODEL | TS805 | ||
|---|---|---|---|
| Input signal | 4~20mA DC | ||
| Impedance | 500Ω (20mA DC) | ||
| Supply pressure | 0.14~0.7MPa | ||
| Stroke | 10~150mm | 0~90º | |
| Air connection | PT1/4, NPT1/4 | ||
| Gauge connection | PT1/8, NPT1/8 | ||
| Conduit | G(PF)1/2, NPT1/2 | ||
| Explosion proof type | EX ia IIC T5/T6 | ||
| Enclosure | IP66 | ||
| Ambient Temp. | Acting Temp. | -30℃~85℃(Standard type), -40℃ ~ 85℃(Low temp type) | |
| Explosion Temp. | -40℃~60℃(T5) / -40℃~40℃(T6) | ||
| Linearity | ±0.5% F.S. | ||
| Sensitivity | ±0.2% F.S. | ||
| Hysteresis | ±0.5% F.S. | ||
| Repeatability | ±0.3% F.S. | ||
| Air consumption | Below 2.3LPM (Sup.=0.14MPa) | ||
| Flow capacity | Over 100LPM (Sup.=0.14Mpa) | ||
| Material | Stainless steel 316 | ||
| Weight | 4.2kg | ||
About Us:
Xiangjing(shanghai) has been a pneumatic and electric control valves distributor for many years in Shanghai, China
we can provide all fisher, samson, koso, masoneilan, flowserve, metso/neles, CCI/STI, HORA, KTM, Sempell, Keystone,WEIR, Azbil and Chinese Pneumatic contorl valves,
Crosby, Dresser, Leser and Chinese Safety Valves.
ROTORK, limitorque, Auma, SIPOS, PS and Chinese electric actuator.
Rosemount, E+H, Yokogawa, ABB, Siemens, VEGA, Krohne, Magnetrol, WIKAand Chinese Brand pressure, temperature, level and flow transmitter.
Ovation, DeltaV, Schneider-Foxboro, Honeywell, ABB Distributed Control System
we have rich experience on control valve and instrument and we can provide China famouse brand pneumatic and electrical control valves to our customer too.
i believe we will have a good cooperation with you.
