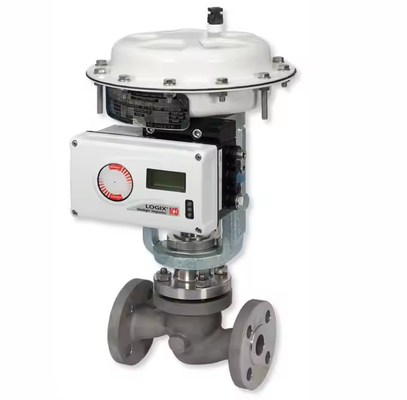

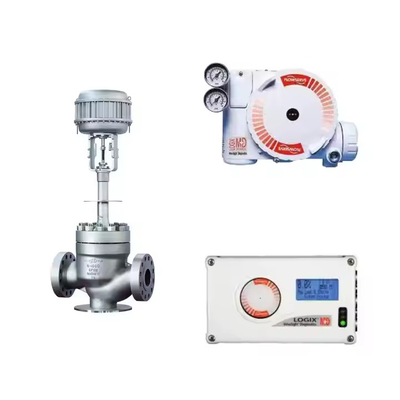

The Logix® 520MD digital positioner is a versatile device that offers superior positioning and tuning functions, as well as powerful diagnostic tools. Its advanced multi-variable gain tuning algorithm enables it to efficiently respond to large step changes while also achieving the necessary resolution to respond to very small step changes.
The Auto-tune procedure of the Logix 520MD positioner carefully measures the actuator response and selects gain values to ensure optimal actuator performance. Additionally, the Auto-tune function includes a gain modifier selector, which can be used to improve the calculated gain in order to achieve the best possible performance.
Configuring the Logix 520MD positioner is easy with its DIP switch configuration, which allows for tuning mode and other common settings to be easily set up. And, if custom settings are required, tuning sets can be modified using a handheld device or ValveSight™ software.
Overall, the Logix 520MD digital positioner is a reliable and efficient device that is capable of accommodating a wide range of actuator sizes and types.
Commissioning has been made easy with our product, as it comes with a fast and simple configuration process. This ensures that you can start using it quickly, with minimal delays.
Additionally, our product has self-calibration and auto-tune features, which are complemented by an adjustable gain selector. This ensures that you get the best possible performance from your system, without having to constantly reconfigure or recalibrate it.
In order to improve compatibility and ease of use, our product is designed to support industry standard HART communications. This means that it can be integrated with other systems and used in a variety of settings without any problems.
Our product is also designed to be highly efficient, with low air consumption that helps to reduce operational costs. Moreover, its two-stage control design ensures faster response times and tighter control, thereby improving the overall performance of your system.
To ensure that you can always keep track of the performance of your system, we have included standard diagnostic functionality through ValveSight™ software. This gives you the ability to monitor and troubleshoot your system, thereby reducing downtime and maintenance requirements.
| Product | Control Valve Positioner |
| Brand | Masoneilan |
| Position Control | Throttling Control, On/Off |
| Shell Material | Industrial Aluminum Housing |
| Communication Protocol | HART |
| Application Industry | Mining, Pulp & Paper, Steel & Primary Metals, Food & Beverage, Corn Wet Milling & Ethanol, Upstream Exploration & Production, Wastewater, Agriculture & Irrigation, Flood Control System, Pharmaceutical, Petrochemicals, Biofuels, Other Industries |
| Humidity | 0-100% Non-condensing |
| Feature | Easy Commissioning With Fast, Simple Configuration |
| Minimum Required Operating Current | -20 °C To +80 °C (-4 °F To +178 °F) |
| Voltage Supply (maximum) | 30 VDC |
Conventional Steam: This method of power generation involves burning fossil fuels to heat water in a boiler, generating steam that drives a turbine to produce electricity.
Combined Cycle: This is a more efficient method of power generation that utilizes both gas and steam turbines to produce electricity.
Concentrated Solar Power (CSP): CSP uses mirrors or lenses to concentrate sunlight onto a small area, which heats a fluid to generate steam and produce electricity.
Biomass & MSW: These renewable sources of energy involve the combustion of organic materials such as wood, crops, and municipal solid waste (MSW) to generate electricity.
Geothermal: This method of power generation involves harnessing the heat from the Earth's core to produce electricity.
Basic (Organic & Inorganic): Basic chemicals are the building blocks for a wide range of products, including plastics, fertilizers, and pharmaceuticals. They can be either organic or inorganic in nature.
Specialty (Fine & Consumer): Specialty chemicals are used in a variety of applications, including electronics, textiles, and cosmetics. They can be further categorized as fine or consumer chemicals.
Biofuels: Biofuels are derived from renewable organic materials such as crops or waste. They are used as an alternative to traditional fossil fuels.
Pharmaceutical: This industry focuses on the development and production of drugs and medicines for human and animal use.
Petrochemicals: Petrochemicals are chemicals that are derived from petroleum or natural gas and are used as feedstock for other industries.
Water Management: This involves the planning, development, and management of water resources for various purposes, such as agriculture, industry, and domestic use.
Wastewater: This refers to the water that has been used in various processes and is now considered waste. It needs to be treated before it can be safely discharged into the environment.
Agriculture & Irrigation: These industries rely on water for crop production and irrigation. Efficient water management practices are crucial for sustainability in these sectors.
Flood Control System: Flood control systems are designed to mitigate the impact of flooding on human settlements and infrastructure by regulating the flow of water in rivers and other bodies of water.
Upstream Exploration & Production: This involves the exploration for and production of crude oil and natural gas. It includes activities such as well drilling, reservoir engineering, and production optimization.
Midstream Transportation: This refers to the transportation of crude oil and natural gas from the production site to refineries or other processing facilities.
Downstream Processing: This includes the refining of crude oil into marketable products such as gasoline, diesel fuel, and lubricants.
Pulp & Paper: This industry involves the production of paper and pulp from wood and other organic materials.
Steel & Primary Metals: These industries produce metals such as steel, aluminum, and copper from raw materials such as iron ore and bauxite.
Food & Beverage: This industry involves the production of food and beverages for human consumption.
Corn Wet Milling & Ethanol: Corn wet milling is the process of separating corn into its various components, such as oil, protein, and starch. Ethanol is produced from the starch component and is used as a biofuel.
Other Industries: This includes a wide range of industries such as textiles, electronics, and construction.
Mining: This involves the extraction of valuable minerals and metals from the earth, such as gold, copper, and coal.
The Control Valve Positioner product technical support and services include:
Product Packaging for Control Valve Positioner:
The Control Valve Positioner will be shipped in a sturdy cardboard box to ensure safe delivery. The product will be cushioned with bubble wrap or foam to prevent any damage during transit.
Shipping Information:
Standard shipping will take 3-5 business days for delivery within the United States. For international orders, shipping times may vary depending on the destination country. Customers will receive a tracking number via email once the product has been shipped.
