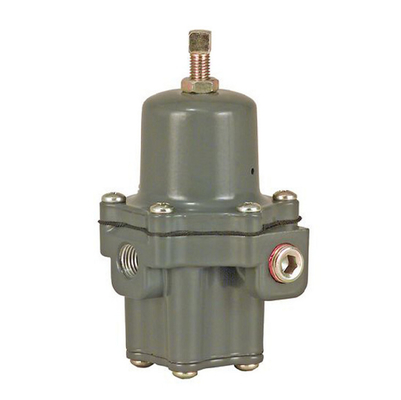

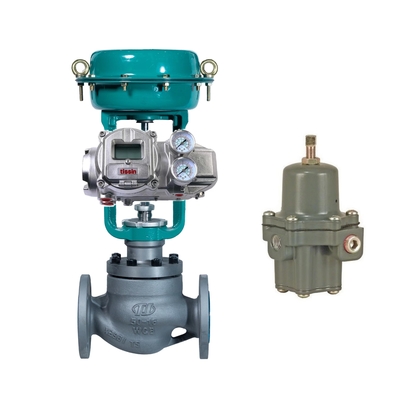

Pneumatic Valve With Tissin TS905 Smart Valve Positioner And Fisher Fisher 67CFR Pressure Reducing Valve

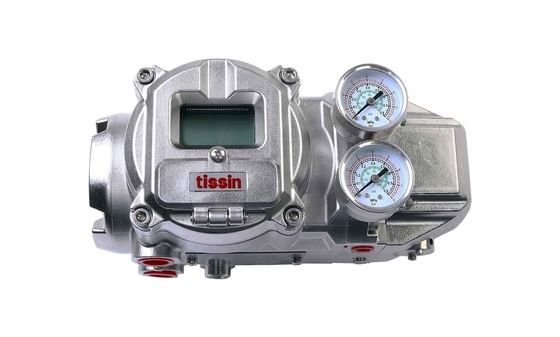

The Tissin 900 Intelligent Valve Positioner is an advanced device designed for precise and reliable valve positioning in industrial applications. It features high precision digital control technology for accurate valve positioning, ensuring optimal performance and maximum efficiency. The device is compatible with a wide range of valves and actuators, making it a versatile and adaptable solution for a variety of industrial applications.
The Tissin 900 also includes a user-friendly interface with an LCD display, making it easy to configure and monitor the positioner's settings. Additionally, the device features advanced diagnostic capabilities, allowing for precise and efficient maintenance and troubleshooting. Its robust construction ensures reliable operation even in harsh industrial environments, and with energy-efficient operation, the Tissin 900 helps to reduce energy consumption and operating costs. Overall, the Tissin 900 is a top-of-the-line solution for industrial valve positioning, offering advanced technology, user-friendly operation, and reliable performance.

• LCD and 4 button local control
• Quick and easy calibration
• PST and alarm function
• Auto/Manual switch included
• Modularization of the internal parts
• IP66 / NEMA4X
• Improvement of valve control speed by applying large flow pilot valve
• Strong vibration resistance and impact resistance

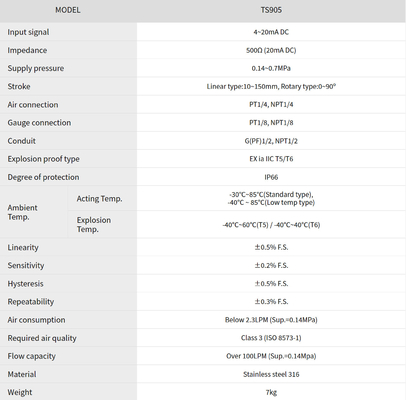

MODEL		TS905
Input signal		4~20mA DC
Impedance		500Ω (20mA DC)
Supply pressure		0.14~0.7MPa
Stroke		Linear type:10~150mm, Rotary type:0~90º
Air connection		PT1/4, NPT1/4
Gauge connection		PT1/8, NPT1/8
Conduit		G(PF)1/2, NPT1/2
Explosion proof type		EX db IIC T5/T6
Degree of protection		IP66
Ambient Temp.	Acting Temp.	-30℃~85℃(Standard type), -40℃ ~ 85℃(Low temp type)
	Explosion Temp.	-40℃~60℃(T5) / -40℃~40℃(T6)
Linearity		±0.5% F.S.
Sensitivity		±0.2% F.S.
Hysteresis		±0.5% F.S.
Repeatability		±0.3% F.S.
Air consumption		Below 2.3LPM (Sup.=0.14MPa)
Required air quality		Class 3 (ISO 8573-1)
Flow capacity		Over 100LPM (Sup.=0.14Mpa)
Material		Aluminum die cast	Stainless steel 316
Weight		7kg
