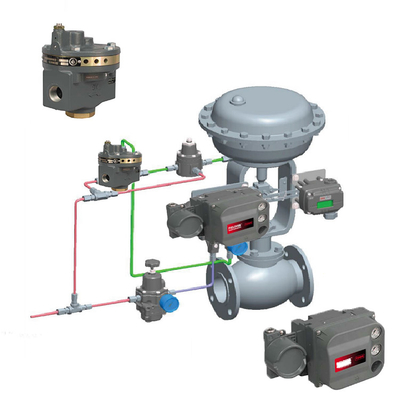

The Fisher FIELDVUE DVC6200 is a highly advanced instrument that enables your operations to operate much closer to the setpoint. By providing more accurate control, it can improve the quality of your products significantly. The device makes use of FIELDVUE Performance Diagnostics, which enables valve operations to be monitored online. This ensures that valve operation performance and reliability are evaluated.
The FIELDVUE Performance Diagnostics system is a cutting-edge feature that provides real-time monitoring of valve operations. It allows for the measurement of variables like pressure, temperature, and flow to determine the criticality of valve functions. This data can be used to detect any irregularities early and to prevent potential issues that could undermine equipment performance or safety.
The Fisher FIELDVUE DVC6200 is an invaluable asset for any operation that values efficiency, productivity, and safety. Its advanced features make it an exceptional tool for ensuring accurate control while improving overall product quality.
The DVC6200 is equipped with a high performance, linkage-less feedback system that eliminates physical contact. This results in the elimination of wearing on parts. The fully encapsulated electronics ensure that they are resistant to the effects of vibration, temperature and corrosive atmospheres.
The DVC6200 is designed to provide quick responsiveness to large step changes, as well as, precise control for small setpoint changes. It is also a HART communicating device, which means that information can be accessed anywhere along the loop. This flexible feature reduces exposure to hazardous environments and makes it easier to evaluate valves in hard-to-reach locations.
The modular design of the DVC6200 allows for critical working components to be replaced without removing field wiring or pneumatic tubing. When integrated into a control system, it can lead to significant hardware and installation cost savings. Additionally, the self-diagnostic capability of the DVC6200 provides valve performance and health evaluation.
Finally, the DVC6200's digital communication capabilities provide easy access to the condition of the valve.
| Technical Parameter | Value |
|---|---|
| Product Name | Control Valve Positioner |
| Data Interface | Wired |
| Diagnostics | Yes |
| Position Control | Throttling Control, On/Off |
| Max Outlet Pressure | 145 Psig |
| Area Classification | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive For FM |
| Supply Media | Air, Natural Gas, Nitrogen |
| Brand Name | FISHER |
| Power Source | Local |
| Process Control | Flow, Pressure, Temperature, Level |
| Communication Protocol | 4-20 MA HART |
The Fisher DVC6200 valve positioner is a highly reliable and precise device that is extensively used in various industrial sectors. This intelligent valve positioner is primarily employed for:
Thanks to its digital communication and self-diagnostics features, the Fisher DVC6200 valve positioner contributes to enhancing the reliability of the system while reducing maintenance costs.
The Control Valve Positioner product technical support and services include:
Product Packaging:
Shipping:
