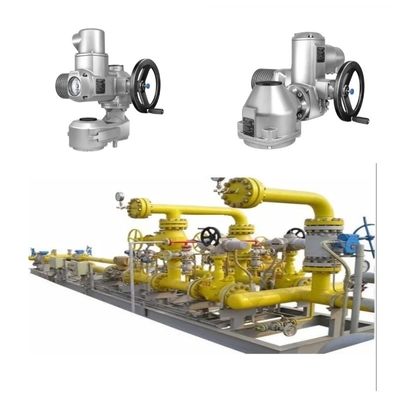

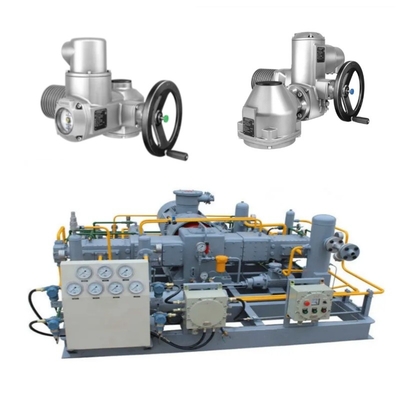

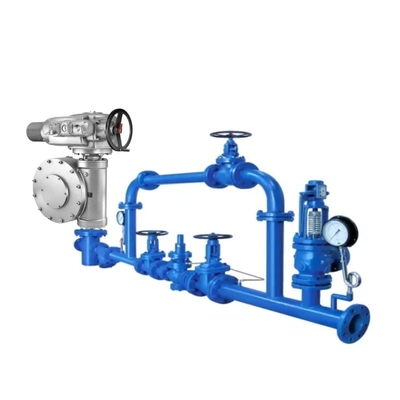

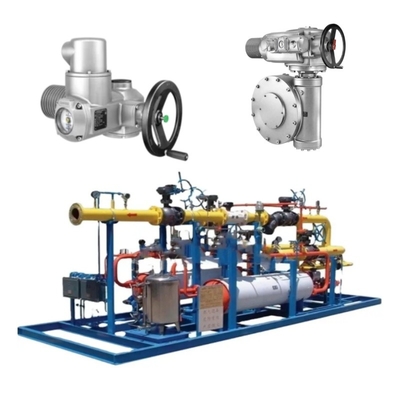

The Valve Switching Skid is equipped with an Auma SA electric actuator and a GK tooth energy box

Product Description:

AUMA Multi-turn Actuator:

An AUMA multi-turn actuator is an actuator that is capable of delivering a minimum of one full week of torque to a valve or valve gearbox, while simultaneously being able to withstand thrust. In most cases, multi-turn valves are required to complete multiple turns. Furthermore, it is common for gate valves to be fitted with liftable stems. For this reason, the output drive shaft for the SA and TIGRON series multi-turn actuators is designed in such a way as to feature a hollow shaft that is capable of driving the valve stem.

Multi-turn Actuators and Valves:

When it comes to valve applications, multi-turn actuators are an essential component in ensuring efficient and proper valve operation. In most cases, multi-turn valves require multiple turns to complete. To facilitate this process, the output drive shafts in the AUMA SA and TIGRON series multi-turn actuators have been configured as hollow shafts, allowing them to easily drive the valve stem. The added benefit of this design feature is the ability of the actuator to withstand thrust, which is critical to ensure reliability of valve operation.

AUMA Actuators for Optimum Valve Performance:

The AUMA multi-turn actuator is the ideal solution for applications that require efficient and reliable valve operation. The hollow output drive shaft used in the SA and TIGRON series multi-turn actuators is designed to drive the valve stem in multi-turn valve applications, ensuring torque is delivered as required, while also being able to handle thrust. With these advanced features, AUMA multi-turn actuators are the obvious choice for valve applications that require high performance and reliability.

Features:

AUMA is a well-known provider of automatic industrial valves and electric actuators. The company's primary product lineup includes multi-coil brakes, linear brakes, and gear boxes.

Industrial plants that deal with process technology require substances such as liquids, gases, steam, and particles to pass through pipes. To regulate the flow of media and control the flow rate by opening or closing the valve, industrial valves are an essential part of these plants. With AUMA's brake, the valve can be operated remotely from the control room.

AUMA's brakes and electric actuators offer precision, efficiency, and automation to the industrial valve processes. These innovative solutions enable remote control of the valve with immense accuracy while maintaining safety standards. AUMA's products can adjust the valve to match the rate or quantity of the flow of media through the pipeline. The company's precision engineering and customer service have helped build a solid reputation across global industries.

Technical Parameters:

Applications:

AUMA multi-ring brake SA is an ideal solution for those who require a wide range of torque options. With a torque range from 10 nm to 32,000 nm and output speed from 4 to 180 RPM, it can be used with three-phase AC, single-phase AC, and DC motors.

Additionally, AUMA multi-ring brake SA ensures reliable service even in harsh industrial applications.

On the other hand, AUMA multi-ring brake SAR offers a torque range of 15 nm to 4,000 nm and an adjustment torque range from 15 nm to 1600 nm. It can start 1,200 c/h, making it highly customizable to the user's needs. The output speed range is 4 to 90 RPM, and it is suitable for three-phase AC, single-phase AC motor.

This brake is designed to provide optimal control and ensure the safety of both machines and operators. It is particularly useful in application areas with varying load requirements.

Support and Services:

The Control Valve Positioner product technical support and services include:

• Expert technical assistance and troubleshooting
• Product manuals and documentation
• Training and education on product operation and maintenance
• Repair, replacement, and refurbishment services
• Calibration and testing services to ensure optimal performance
• Customization and tailored solutions to meet specific customer needs

Packing and Shipping:

Product Packaging:

• The control valve positioner will be securely packed in a sturdy cardboard box to ensure its safety during transportation.
• The box will be labeled with the product name, model number, and handling instructions.
• Inside the box, the product will be wrapped in bubble wrap or foam to prevent any damage during shipping.
• Instruction manuals and warranty information will be included in the package.

Shipping:

• Shipping will be carried out by a reputable courier service.
• The product will be shipped within 2-3 business days of receiving the order.
• Customers will receive a tracking number via email to track their shipment.
• The estimated delivery time will depend on the customer's location and the courier service used.
• Customers are responsible for any customs duties or taxes that may apply to their order.
