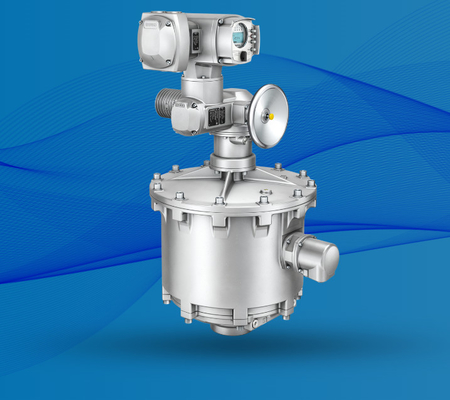

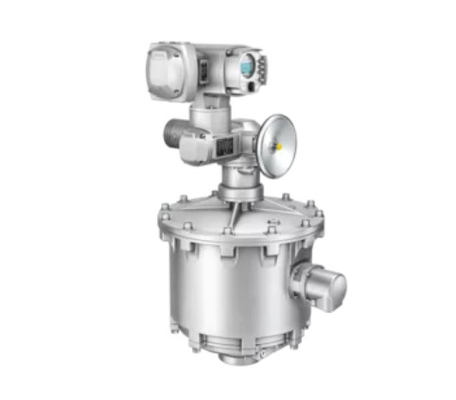

An AUMA multi-turn actuator refers to an actuator that can deliver a full week of torque to a valve or valve gearbox, while also being able to withstand the necessary thrust. This type of actuator is commonly used in applications where multi-turn valves require more than one turn to complete. For instance, gate valves usually come equipped with a liftable stem.
In order to drive the valve stem, the output drive shaft of the SA and TIGRON series multi-turn actuators has been specifically designed as a hollow shaft.
Overall, the AUMA multi-turn actuator is a practical solution for a wide range of valve automation needs, making it a popular choice among industrial professionals.
AUMA is a renowned manufacturer that specializes in creating top-of-the-line automatic industrial valves and electric actuators. Their product line is comprised mainly of multi-coil brakes, linear brakes, and gear boxes.

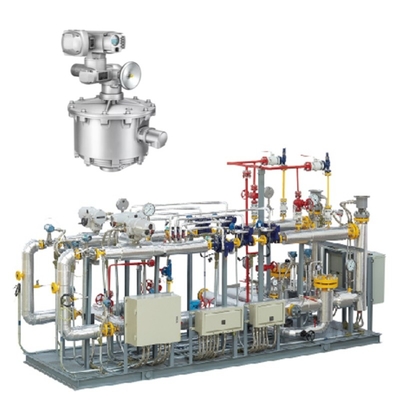

In a variety of process technology facilities, it is essential for liquids, gases, steam and particles to traverse through pipes. In order to control the flow of such materials, industrial valves are utilized to either inhibit or release the media and regulate the flow rate by opening or closing these valves. AUMA's brake system allows for remote control of these valves directly from the control room.
| Technical Parameter | Value |
|---|---|
| Rotation angle | Min 2.5° Max 100° |
| Torque range | 10 Nm To 32 000 Nm |
| Seal protection | IP68 |
| Warranty | 1 Year |
| Output speed | 4 To 180 Rpm |
| Ambient temperature | - 30 °C To +70 °C |
| Certifications | ATEX, FM, IEC, And CSA Approvals. Intrinsically Safe And Non-incendive (energy Limited) |
| Temperature of Media | High Temperature |
| Model Number | SA/SAR/SAV/SAVR/SAEX |
| Media | Gas |
This Control Valve Positioner product is a Masoneilan Valve Position Automation.
AUMA Multi-Ring Brake SA:
The AUMA Multi-ring Brake SA is a versatile brake mechanism that is designed to be highly efficient and reliable. It comes with a variety of features that allow it to be used in different applications. One of its main features is its torque range, which can go from 10 nm to 32,000 nm. Additionally, it has an output speed range of 4 to 180 RPM, making it highly adaptable to different types of motors such as three-phase AC, single-phase AC, and DC motors.
AUMA Multi-Ring Brake SAR:
The AUMA Multi-Ring Brake SAR is another excellent brake mechanism that is well-suited for a variety of applications. One of its main features is its torque range, which varies from 15 nm to 4,000 nm. It also has an adjustment torque range of 15 nm to 1600 nm, and start times of 1,200 c/h. Moreover, its output speed varies from 4 to 90 RPM, and it is suitable for three-phase AC or single-phase AC motors.
