An AUMA multi-turn actuator is capable of providing a full week's worth of torque to a valve or valve gearbox, and is also able to endure substantial thrust. Given that multi-turn valves require several turns to be completed in most applications, gate valves are commonly fitted with a stem that can be lifted. Consequently, the output drive shaft of the SA and TIGRON series multi-turn actuators has been devised as a hollow shaft for the purpose of driving the valve stem.
AUMA is a leading manufacturer of automatic industrial valves and electric actuators. Their main products include multi-coil brakes, linear brakes, and gear boxes.

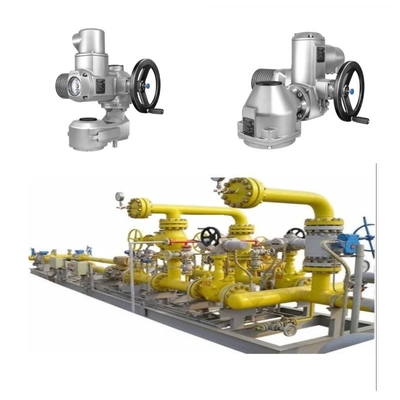

One of the primary uses for AUMA products is in process technology plants. These plants require the transportation of liquids, gases, steam, and particles through piping systems. Industrial valves are essential for controlling the flow of media and regulating flow rates. By using AUMA brakes, these valves can be remotely operated from the control room.
| Parameter | Value |
|---|---|
| Brand Name | Auma |
| Model Number | SA/SAR/SAV/SAVR/SAEX |
| Certifications | ATEX, FM, IEC, And CSA Approvals. Intrinsically Safe And Non-incendive (energy Limited) |
| Rotation angle | Min 2.5° Max 100° |
| Torque range | 10 Nm To 32 000 Nm |
| Ambient temperature | - 30 °C To +70 °C |
| Output speed | 4 To 180 Rpm |
| Warranty | 1 Year |

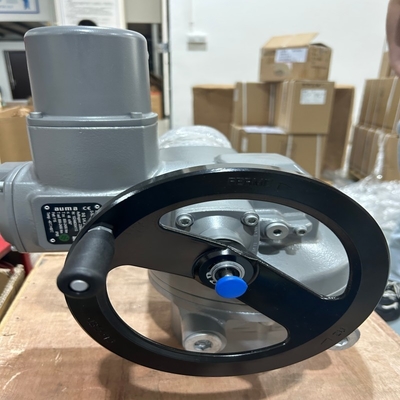

| Handwheel operation | Manual |
| Seal protection | IP68 |
This Control Valve Positioner is a product of Auma, and is also known as a Pneumatic Valve Positioner. It comes with a warranty of 1 year, and has a manual handwheel operation. Its seal protection is IP68.
The AUMA Multi-Ring Brake SA is a reliable and powerful brake system suitable for a range of industrial applications. With a torque range that spans from 10 nm to 32,000 nm, and an output speed between 4 and 180 RPM, this brake system can meet the needs of many different motor types including three-phase AC, single-phase AC, and DC motors.
The AUMA Multi-Ring Brake SAR is a versatile and adjustable brake system with a torque range between 15 nm and 4,000 nm. The adjustment torque range spans from 15 nm to 1600 nm, and the start times reach up to 1,200 c/h. With an output speed between 4 and 90 RPM, this brake system is suitable for three-phase AC and single-phase AC motors.
The Control Valve Positioner product technical support and services include:
Product Packaging:

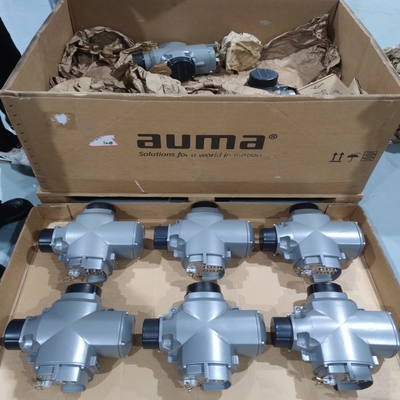

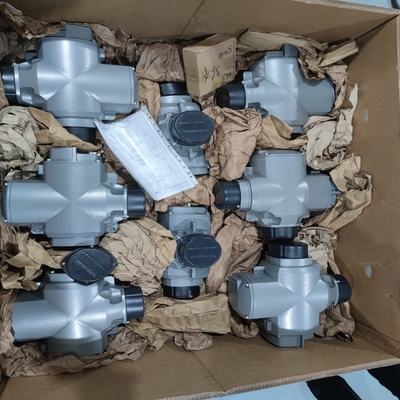

The Control Valve Positioner comes securely packaged in a sturdy cardboard box to ensure safe transportation. The product is packed with foam inserts to prevent any damage during shipping. The box contains the control valve positioner along with an instruction manual.
Shipping:
Our standard shipping method is via UPS ground. Orders are processed within 48 hours of receipt and shipped within 3-5 business days. Shipping charges are calculated based on weight and distance. Customers can also choose expedited shipping options for an additional cost.
